NB6L14M - Differential 1:4 CML Fanout Buffer

Product Overview

📥 Download Datasheet

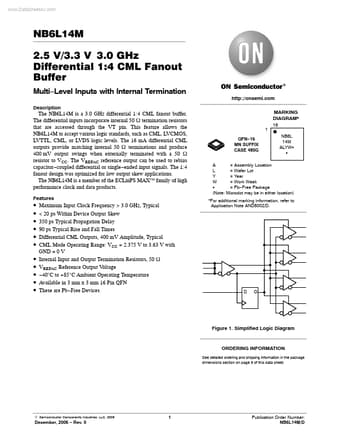

Datasheet preview – NB6L14M

Datasheet Details

Part number NB6L14M
Manufacturer ON Semiconductor
File Size 180.40 KB
Description Differential 1:4 CML Fanout Buffer
Datasheet download datasheet NB6L14M Datasheet
Additional preview pages of the NB6L14M datasheet.

Product details

Description

http://onsemi.com MARKING DIAGRAM 1 QFN 16 MN SUFFIX CASE 485G 16 NB6L 14M ALYWG G The NB6L14M is a 3.0 GHz differential 1:4 CML fanout buffer.The differential inputs incorporate internal 50 W termination resistors that are accessed through the VT pin.This feature allows the NB6L14M to accept various logic standards, such as CML, LVCMOS, LVTTL, CML, or LVDS logic levels.The 16 mA differential CML outputs provide matching internal 50 W terminations and produce 400 mV output swing
