MDS1521 Datasheet, Mosfet, MagnaChip

MDS1521 Features

  • Mosfet VDS = 30V ID = 28.2A @VGS = 10V RDS(ON) < 4.0mΩ @VGS = 10V < 5.5mΩ @VGS = 4.5V 100% UIL Tested 100% Rg Tested 5(D) 6(D) 7(D) 8(D) 4(G) 3(S) 2(S) 1(S) Absolute Maximum Ratings (Ta = 2

PDF File Details

Part number:

MDS1521

Manufacturer:

MagnaChip

File Size:

675.51kb

Download:

📄 Datasheet

Description:

Single n-channel trench mosfet. The MDS1521 uses advanced MagnaChip’s MOSFET Technology, which provides high performance in on-state resistance, fast switching perfo

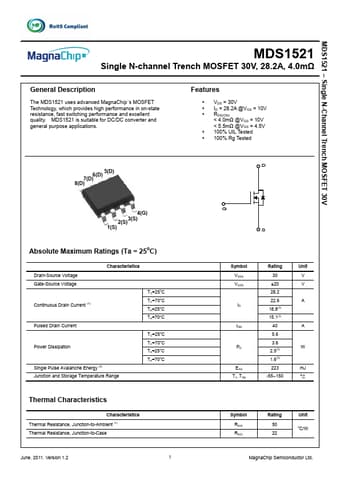

Datasheet Preview: MDS1521 📥 Download PDF (675.51kb)
Page 2 of MDS1521 Page 3 of MDS1521

MDS1521 Application

  • Applications Features VDS = 30V ID = 28.2A @VGS = 10V RDS(ON) < 4.0mΩ @VGS = 10V < 5.5mΩ @VGS = 4.5V 100% UIL Tested 100% Rg Tested 5(D) 6(D) 7(D
