MDS1526 Datasheet, Mosfet, MagnaChip

MDS1526 Features

  • Mosfet  VDS = 30V  ID = 16.1A @VGS = 10V  RDS(ON) < 11.0mΩ @VGS = 10V < 16.4mΩ @VGS = 4.5V  100% UIL Tested  100% Rg Tested 5(D) 6(D) 7(D) 8(D) 4(G) 3(S) 2(S) 1(S) Absolute Max

PDF File Details

Part number:

MDS1526

Manufacturer:

MagnaChip

File Size:

1.00MB

Download:

📄 Datasheet

Description:

N-channel trench mosfet. The MDS1526 uses advanced Magnachip’s MOSFET Technology, which provides high performance in on-state resistance, fast switching perfo

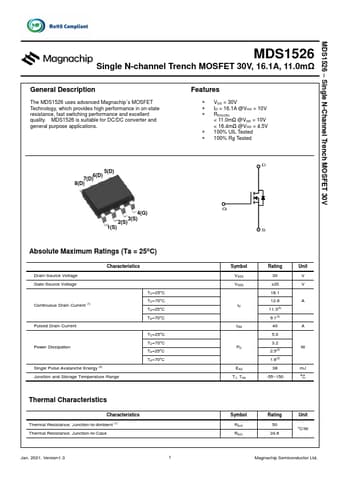

Datasheet Preview: MDS1526 📥 Download PDF (1.00MB)
Page 2 of MDS1526 Page 3 of MDS1526

MDS1526 Application

  • Applications Features  VDS = 30V  ID = 16.1A @VGS = 10V  RDS(ON) < 11.0mΩ @VGS = 10V < 16.4mΩ @VGS = 4.5V  100% UIL Tested  100% Rg T
