MDS1524 - N-Channel Trench MOSFET

MDS1524 Description

MDS1524 * Single N-Channel Trench MOSFET 30V MDS1524 Single N-channel Trench MOSFET 30V, 19.3A, 8.1mΩ General .
The MDS1524 uses advanced MagnaChip’s MOSFET Technology, which provides high performance in on-state resistance, fast switching performance and excell.

MDS1524 Features

* VDS = 30V ID = 19.3A @VGS = 10V RDS(ON) < 8.1mΩ @VGS = 10V < 11.6mΩ @VGS = 4.5V 100% UIL Tested 100% Rg Tested 5(D) 6(D) 7(D) 8(D) 4(G) 3(S) 2(S) 1(S) Absolute Maximum Ratings (Ta = 25oC) Drain-Source Voltage Gate-Source Voltage Characteristics Continuous Drain Current (1) Pulsed Drain Curren

📥 Download Datasheet

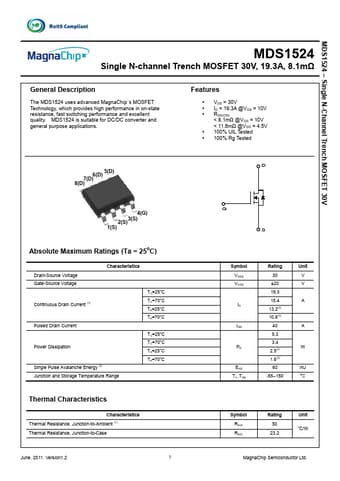

Preview of MDS1524 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MDS1524
Manufacturer
MagnaChip
File Size
660.66 KB
Datasheet
MDS1524-MagnaChip.pdf
Description
N-Channel Trench MOSFET
