SLD5N60C

N-Channel MOSFET

SLD5N60C Features

* - 4.5A, 600V, RDS(on) = 2.5Ω@VGS = 10 V - Low gate charge ( typical 16nC) - High ruggedness - Fast switching - 100% avalanche tested - Improved dv/dt capability D D GS D-PAK GDS I-PAK G S Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt PD T

SLD5N60C General Description

This Power MOSFET is produced using Maple semi‘s advanced planar stripe DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices.

SLD5N60C Datasheet (950.81 KB)

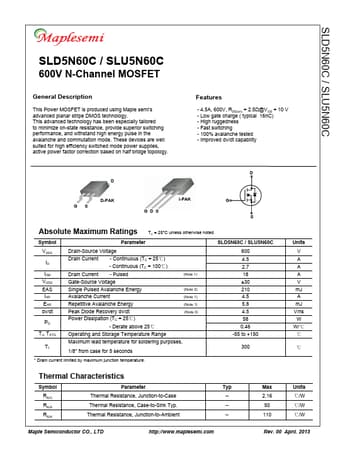

Preview of SLD5N60C PDF

Datasheet Details

Part number:

SLD5N60C

Manufacturer:

Maple Semiconductor

File Size:

950.81 KB

Description:

N-channel mosfet.
