SLD5N50S

N-Channel MOSFET

SLD5N50S Features

* - 5.0A, 500V, RDS(on) = 1.35Ω@VGS = 10 V - Low gate charge ( typical 26nC) - High ruggedness - Fast switching - 100% avalanche tested - Improved dv/dt capability D D TO-252 TO-251 G GS GDS S Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter SLU5N50S SLD5N50S VD

SLD5N50S General Description

This Power MOSFET is produced using Maple semi‘s advanced planar stripe DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices.

SLD5N50S Datasheet (0.96 MB)

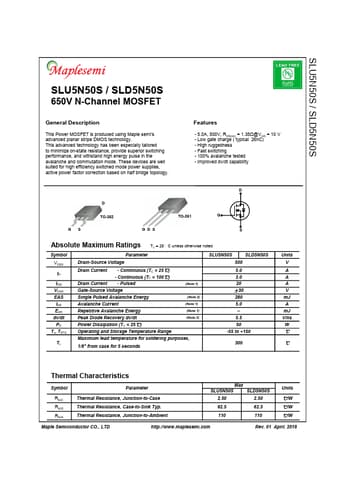

Preview of SLD5N50S PDF

Datasheet Details

Part number:

SLD5N50S

Manufacturer:

Maple Semiconductor

File Size:

0.96 MB

Description:

N-channel mosfet.
