ME60N03AS - 25V N-Channel Enhancement Mode MOSFET

Datasheet Summary

Features

  • Advanced trench process technology High density cell design for ultra low on-resistance Specially designed for DC/DC converters and motor drivers Fully characterized avalanche voltage and current PIN.

📥 Download Datasheet

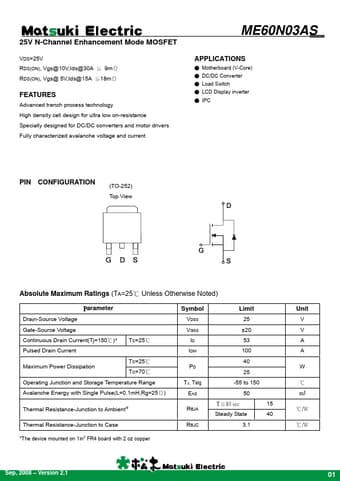

Datasheet preview – ME60N03AS

Datasheet Details

Part number ME60N03AS
Manufacturer Matsuki
File Size 1.10 MB
Description 25V N-Channel Enhancement Mode MOSFET
Datasheet download datasheet ME60N03AS Datasheet
Additional preview pages of the ME60N03AS datasheet.

📁 Similar Datasheet

  • ME600815 - Three-Phase Diode Bridge Modules (150 Amperes/800 Volts) (Powerex Powers)
  • ME601215 - Three-Phase Diode Bridge Modules (150 Amperes/1200-1600 Volts) (Powerex Powers)
  • ME601615 - Three-Phase Diode Bridge Modules (150 Amperes/1200-1600 Volts) (Powerex Powers)
  • ME6118 - 1A Adjustable Voltage High Speed LDO Regulators (ChipSourceTek)
  • ME6118 - 800mA Adjustable Voltage High Speed LDO Regulators (Microne)
  • ME6119 - 400mA Adjustable Voltage High Speed LDO Regulators (Microne)
  • ME6201 - low-dropout linear voltage regulators (Microne)
  • ME6203 - High Input Voltage LDO Linear Regulators (YUSHIN)
  • ME6203 - High Input Voltage LDO Regulators (Microne)
  • ME6206 - positive voltage regulators (Microne)
Other Datasheets by Matsuki

Full PDF Text Transcription

Click to expand full text
ME60N03AS 25V N-Channel Enhancement Mode MOSFET VDS=25V RDS(ON), Vgs@10V,Ids@30A ≦ 9mΩ RDS(ON), Vgs@ 5V,Ids@15A ≦18mΩ APPLICATIONS ● Motherboard (V-Core) ● DC/DC Converter ● Load Switch ● LCD Display inverter ● IPC FEATURES Advanced trench process technology High density cell design for ultra low on-resistance Specially designed for DC/DC converters and motor drivers Fully characterized avalanche voltage and current PIN CONFIGURATION (TO-252) Top View Absolute Maximum Ratings (TA=25℃ Unless Otherwise Noted) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current(Tj=150℃)* Pulsed Drain Current Maximum Power Dissipation TC=25℃ TC=70℃ TC=25℃ Symbol VDSS VGSS ID IDM PD TJ, Tstg EAS RθJA RθJC Limit 25 ±20 53 100 40 25 -55 to 150 50 T≦10 sec Steady State 3.
