DS26556 - 4-Port Cell/Packet Over T1/E1/J1 Transceiver

This page provides the datasheet information for the DS26556, a member of the DS2 4-Port Cell/Packet Over T1/E1/J1 Transceiver family.

Description

The DS26556 is a quad, software-selectable T1, E1, or J1 transceiver with a cell/packet/TDM interface.

It is composed of four framer/formatters + LIUs, and a UTOPIA (cell), POS-PHY™ (packet), and TDM backplane interface.

Features

  • Four Independent, Full-Featured T1/E1/J1 Transceivers UTOPIA 2 and 3 Cell Interface POS-PHY 2 and 3 Packet Interface TDM Backplane Supports TDM Bus Rates from 1.544MHz to 16.384MHz Alarm Detection and Insertion Full-Featured BERT for Each Port AMI, B8ZS, HDB3, NRZ Line Coding Transmit Synchronizer BOC Message Controller (T1) One HDLC Controller per Framer Performance Monitor Counters RAI-CI and AIS-CI Support Internal Clock Generator (CLAD).

📥 Download Datasheet

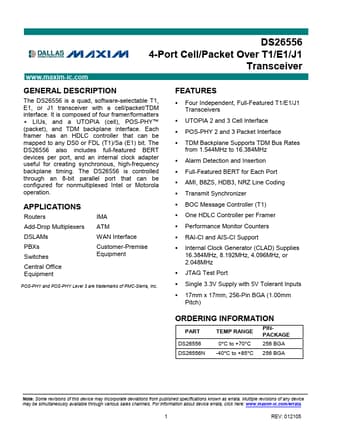

Datasheet preview – DS26556

📁 Similar Datasheet

  • DS26503 - T1/E1/J1 BITS Element (Dallas Semiconducotr)
  • DS2604 - NPN TRIPLE DIFFUSED TYPE (HIGH POWER SWITCHING/ HAMMER DRIVE/ PULSE MOTOR DRIVE APPLICATIONS) (Toshiba Semiconductor)
  • DS26324 - E1/T1/J1 Short-Haul Line Interface Unit (Dallas Semiconductor)
  • DS26334 - E1/T1/J1 Shortand Long-Haul Line Interface Unit (Dallas Semiconductor)
  • DS26401 - Octal T1/E1/J1 Framer (Dallas Semiconducotr)
  • DS2660-7R - 100 Watt DC-DC Converters (Power-One)
  • DS26C31M - CMOS Quad TRI-STATE Differential Line Driver (National Semiconductor)
  • DS26C31MQML - DS26C31MQML CMOS Quad TRI-STATE Differential Line Driver (Rev. A) (ETCTI)
  • DS26C31T - CMOS Quad TRI-STATE Differential Line Driver (National Semiconductor)
  • DS26C32AM - Quad Differential Line Receiver (National Semiconductor)
Other Datasheets by Maxim Integrated Products
  • DS26502 - T1/E1/J1/64KCC BITS Element
  • DS26504 - T1/E1/J1/64KCC BITS Element
  • DS26518 - single-chip 8-port framer and line interface unit (LIU) combination
  • DS26519 - single-chip 16-port framer and line interface unit (LIU) combination
  • DS26522 - Dual T1/E1/J1 Transceiver
  • DS26524 - Quad T1/E1/J1 Transceiver
  • DS26528 - Octal T1/E1/J1 Transceiver
  • DS26101 - 8-Port TDM-to-ATM PHY

Full PDF Text Transcription

Click to expand full text
DS26556 4-Port Cell/Packet Over T1/E1/J1 Transceiver www.maxim-ic.com GENERAL DESCRIPTION The DS26556 is a quad, software-selectable T1, E1, or J1 transceiver with a cell/packet/TDM interface. It is composed of four framer/formatters + LIUs, and a UTOPIA (cell), POS-PHY™ (packet), and TDM backplane interface. Each framer has an HDLC controller that can be mapped to any DS0 or FDL (T1)/Sa (E1) bit. The DS26556 also includes full-featured BERT devices per port, and an internal clock adapter useful for creating synchronous, high-frequency backplane timing. The DS26556 is controlled through an 8-bit parallel port that can be configured for nonmultiplexed Intel or Motorola operation.
