MAX2041 - Upconversion / Downconversion Mixer

Datasheet Summary

Description

The MAX2041 high-linearity passive upconverter or downconverter mixer is designed to provide 7.4dB NF and a 7.2dB conversion loss for an RF frequency range of 1700MHz to 3000MHz to support UMTS/WCDMA, DCS, PCS, and WiMAX base-station transmitter or receiver applications.

Features

  • o 1700MHz to 3000MHz RF Frequency Range o 1900MHz to 3000MHz LO Frequency Range o 1500MHz to 2000MHz LO Frequency Range (MAX2039) o DC to 350MHz IF Frequency Range o 7.2dB Conversion Loss o +33.5dBm Input IP3 o o o o o +23.3dBm Input 1dB Compression Point 7.4dB Noise Figure Integrated LO Buffer Integrated RF and LO Baluns Low -3dBm to +3dBm LO Drive MAX2041 o Built-In SPDT LO Switch with 43dB LO1 to LO2 Isolation and 50ns Switching Time o Pin Compatible with the MAX2031 815MHz to 995MHz Mixer.

📥 Download Datasheet

Datasheet preview – MAX2041

Datasheet Details

Part number MAX2041
Manufacturer Maxim Integrated Products
File Size 416.61 KB
Description Upconversion / Downconversion Mixer
Datasheet download datasheet MAX2041 Datasheet
Additional preview pages of the MAX2041 datasheet.

📁 Similar Datasheet

  • MAX20410 - Fully Integrated Buck Converters (Analog Devices)
  • MAX20410 - Automotive 36V 8A/10A Fully-Integrated Buck Converter (Maxim Integrated)
  • MAX20410E - Fully Integrated Buck Converters (Analog Devices)
  • MAX20411 - Automotive High-Efficiency Single 16A/22A/30A/40A Step-Down Converter (Analog Devices)
  • MAX204 - +5V RS-232 Transceivers with 0.1uF External Capacitors (Maxim)
  • MAX20402 - Fully Integrated Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20403 - Fully Integrated Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20404 - Automotive 36V Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20405 - Automotive 36V Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20406 - Automotive 36V Synchronous Silent Switcher Buck Converters (Analog Devices)
Other Datasheets by Maxim Integrated Products
  • MAX2042 - 2000MHz to 3000MHz Upconversion/Downconversion Mixer
  • MAX2043 - Low LO Leakage Base-Station Rx/Tx Mixer
  • MAX2044 - 2300MHz to 4000MHz Upconversion/Downconversion Mixer
  • MAX2045 - High-Gain Vector Multipliers
  • MAX2046 - High-Gain Vector Multipliers
  • MAX2047 - High-Gain Vector Multipliers
  • MAX2010 - 500MHz to 1100MHz Adjustable RF Predistorter
  • MAX2014 - 75dB Logarithmic Detector/Controller

Full PDF Text Transcription

Click to expand full text

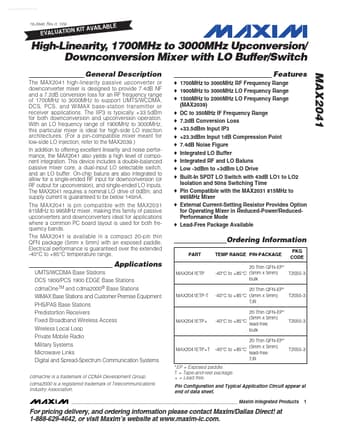

www.DataSheet4U.com 19-3948; Rev 0; 1/06 ILABLE N KIT AVA IO T A U L A V E High-Linearity, 1700MHz to 3000MHz Upconversion/ Downconversion Mixer with LO Buffer/Switch General Description The MAX2041 high-linearity passive upconverter or downconverter mixer is designed to provide 7.4dB NF and a 7.2dB conversion loss for an RF frequency range of 1700MHz to 3000MHz to support UMTS/WCDMA, DCS, PCS, and WiMAX base-station transmitter or receiver applications. The IIP3 is typically +33.5dBm for both downconversion and upconversion operation. With an LO frequency range of 1900MHz to 3000MHz, this particular mixer is ideal for high-side LO injection architectures. (For a pin-compatible mixer meant for low-side LO injection, refer to the MAX2039.
