MAX2042 - 2000MHz to 3000MHz Upconversion/Downconversion Mixer

Datasheet Summary

Description

The MAX2042 single, high-linearity upconversion/downconversion mixer provides +36dBm IIP3, 7.3dB noise figure, and 7.2dB conversion loss for 2000MHz to 3000MHz WCS, LTE, WiMAXK, and MMDS wireless infrastructure applications.

Features

  • S 2000MHz to 3000MHz RF Frequency Range S 1800MHz to 2800MHz LO Frequency Range S 50MHz to 500MHz IF Frequency Range S 7.2dB Conversion Loss S 7.3dB Noise Figure S +36dBm Typical IIP3 S +23.4dBm Typical Input 1dB Compression Point S 70dBc Typical 2RF-2LO Spurious Rejection at PRF = -10dBm S Integrated LO Buffer S Integrated RF and LO Baluns for Single-Ended Inputs S Low -3dBm to +3dBm LO Drive S Pin Compatible with the MAX2042A 2000MHz to 3900MHz High-Side LO Injection Mixer S Pin S.

📥 Download Datasheet

Datasheet preview – MAX2042

Datasheet Details

Part number MAX2042
Manufacturer Maxim Integrated Products
File Size 5.14 MB
Description 2000MHz to 3000MHz Upconversion/Downconversion Mixer
Datasheet download datasheet MAX2042 Datasheet
Additional preview pages of the MAX2042 datasheet.

📁 Similar Datasheet

  • MAX2042A - 1600MHz to 3900MHz Upconversion/Downconversion Mixer (Maxim Integrated)
  • MAX204 - +5V RS-232 Transceivers with 0.1uF External Capacitors (Maxim)
  • MAX20402 - Fully Integrated Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20403 - Fully Integrated Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20404 - Automotive 36V Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20405 - Automotive 36V Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20406 - Automotive 36V Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20408 - Fully Integrated Buck Converters (Analog Devices)
  • MAX20408 - Automotive 36V 8A/10A Fully-Integrated Buck Converter (Maxim Integrated)
  • MAX20408E - Fully Integrated Buck Converters (Analog Devices)
Other Datasheets by Maxim Integrated Products
  • MAX2041 - Upconversion / Downconversion Mixer
  • MAX2043 - Low LO Leakage Base-Station Rx/Tx Mixer
  • MAX2044 - 2300MHz to 4000MHz Upconversion/Downconversion Mixer
  • MAX2045 - High-Gain Vector Multipliers
  • MAX2046 - High-Gain Vector Multipliers
  • MAX2047 - High-Gain Vector Multipliers
  • MAX2010 - 500MHz to 1100MHz Adjustable RF Predistorter
  • MAX2014 - 75dB Logarithmic Detector/Controller

Full PDF Text Transcription

Click to expand full text

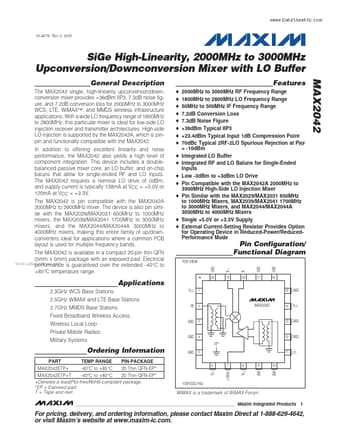

19-4679; Rev 0; 8/09 SiGe High-Linearity, 2000MHz to 3000MHz Upconversion/Downconversion Mixer with LO Buffer General Description The MAX2042 single, high-linearity upconversion/downconversion mixer provides +36dBm IIP3, 7.3dB noise figure, and 7.2dB conversion loss for 2000MHz to 3000MHz WCS, LTE, WiMAXK, and MMDS wireless infrastructure applications. With a wide LO frequency range of 1800MHz to 2800MHz, this particular mixer is ideal for low-side LO injection receiver and transmitter architectures. High-side LO injection is supported by the MAX2042A, which is pinpin and functionally compatible with the MAX2042. In addition to offering excellent linearity and noise performance, the MAX2042 also yields a high level of component integration.
