MAX2042A - 1600MHz to 3900MHz Upconversion/Downconversion Mixer

Datasheet Summary

Description

The MAX2042A single, high-linearity upconversion/ downconversion mixer provides up to +33dBm input IP3, 7.25dB noise figure, and 7.2dB conversion loss for 1600MHz to 3900MHz GSM/EDGE, CDMA, TD-SCDMA, WCDMA, LTE, TD-LTE, WiMAXK, and MMDS wireless infrastructure applications.

Features

  • S Wide-Band Coverage.
  • 1600MHz to 3900MHz RF Frequency Range.
  • 1300MHz to 4000MHz LO Frequency Range.
  • 50MHz to 500MHz IF Frequency Range S 7.2dB Conversion Loss S 7.25dB Noise Figure S High Linearity.
  • +33dBm Input IP3.
  • +21.7dBm Input 1dB Compression Point.
  • 72dBc Typical 2LO - 2RF Spurious Rejection at PRF = -10dBm S Simple PCB Layout.
  • Integrated LO Buffer.
  • Integrated LO and RF Baluns for Single-Ended Inputs S Low -6dBm to +3dBm LO Drive S Pin Compatibl.

📥 Download Datasheet

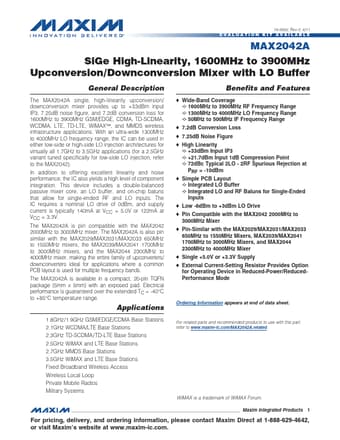

Datasheet preview – MAX2042A

Datasheet Details

Part number MAX2042A
Manufacturer Maxim Integrated
File Size 10.11 MB
Description 1600MHz to 3900MHz Upconversion/Downconversion Mixer
Datasheet download datasheet MAX2042A Datasheet
Additional preview pages of the MAX2042A datasheet.

📁 Similar Datasheet

  • MAX2042 - 2000MHz to 3000MHz Upconversion/Downconversion Mixer (Maxim Integrated Products)
  • MAX204 - +5V RS-232 Transceivers with 0.1uF External Capacitors (Maxim)
  • MAX20402 - Fully Integrated Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20403 - Fully Integrated Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20404 - Automotive 36V Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20405 - Automotive 36V Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20406 - Automotive 36V Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20408 - Fully Integrated Buck Converters (Analog Devices)
  • MAX20408E - Fully Integrated Buck Converters (Analog Devices)
  • MAX2041 - Upconversion / Downconversion Mixer (Maxim Integrated Products)
Other Datasheets by Maxim Integrated
  • MAX20408 - Automotive 36V 8A/10A Fully-Integrated Buck Converter
  • MAX20410 - Automotive 36V 8A/10A Fully-Integrated Buck Converter
  • MAX20002 - 2A/3A Fully Integrated Step-Down Converters
  • MAX20003 - 2A/3A Fully Integrated Step-Down Converters
  • MAX20021 - Step-Down DC-DC Converters
  • MAX20022 - Step-Down DC-DC Converters
  • MAX2003A - NiCd/NiMH Battery Fast-Charge Controllers
  • MAX20070 - Integrated TFT Power Supplies and LED Backlight Drivers

Full PDF Text Transcription

Click to expand full text
19-5902; Rev 0; 6/11 EVALUATION KIT AVAILABLE MAX2042A SiGe High-Linearity, 1600MHz to 3900MHz Upconversion/Downconversion Mixer with LO Buffer General Description The MAX2042A single, high-linearity upconversion/ downconversion mixer provides up to +33dBm input IP3, 7.25dB noise figure, and 7.2dB conversion loss for 1600MHz to 3900MHz GSM/EDGE, CDMA, TD-SCDMA, WCDMA, LTE, TD-LTE, WiMAXK, and MMDS wireless infrastructure applications. With an ultra-wide 1300MHz to 4000MHz LO frequency range, the IC can be used in either low-side or high-side LO injection architectures for virtually all 1.7GHz to 3.5GHz applications (for a 2.5GHz variant tuned specifically for low-side LO injection, refer to the MAX2042).
