MAX204 - +5V RS-232 Transceivers with 0.1uF External Capacitors

This page provides the datasheet information for the MAX204, a member of the MAX +5V RS-232 Transceivers with 0.1uF External Capacitors family.

Datasheet Summary

Description

MAX200-MAX209, MAX211, and MAX213 are a family of RS-232 and V.28 transceivers with integrated charge pump circuitry for single +5V supply operation.

Features

  • Saves Board Space.
  • Integrated Charge Pump Circuitry Eliminates the Need for a Bipolar ±12V Supply Enables Single Supply Operation From Either +5V or 9V to +12V.
  • Integrated 0.1μF Capacitors (MAX203, MAX205).
  • 24 pin SSOP Package Saves Up to 40% Versus SO Package.
  • Saves Power for Longer Battery Operation.
  • 5μW Shutdown Mode (MAX200, MAX205, MAX206, MAX211).
  • 75μW Ring Indicator Monitoring with Two Active Receivers (MAX213).

📥 Download Datasheet

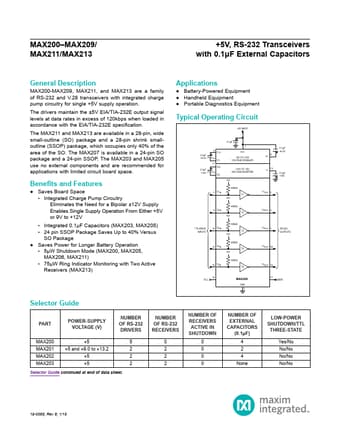

Datasheet preview – MAX204

Datasheet Details

Part number MAX204
Manufacturer Maxim
File Size 560.45 KB
Description +5V RS-232 Transceivers with 0.1uF External Capacitors
Datasheet download datasheet MAX204 Datasheet
Additional preview pages of the MAX204 datasheet.

📁 Similar Datasheet

  • MAX20402 - Fully Integrated Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20403 - Fully Integrated Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20404 - Automotive 36V Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20405 - Automotive 36V Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20406 - Automotive 36V Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20408 - Fully Integrated Buck Converters (Analog Devices)
  • MAX20408 - Automotive 36V 8A/10A Fully-Integrated Buck Converter (Maxim Integrated)
  • MAX20408E - Fully Integrated Buck Converters (Analog Devices)
  • MAX2041 - Upconversion / Downconversion Mixer (Maxim Integrated Products)
  • MAX20410 - Fully Integrated Buck Converters (Analog Devices)
Other Datasheets by Maxim
  • MAX200 - RS-232 Transceivers
  • MAX2003 - NiCd/NiMH Battery Fast-Charge Controllers
  • MAX2009 - 1200MHz to 2500MHz Adjustable RF Predistorter
  • MAX201 - +5V-Powered / Multichannel RS-232 Drivers/Receivers
  • MAX2015 - 0.1GHz to 2.5GHz / 75dB Logarithmic Detector/Controller
  • MAX202 - +5V-Powered / Multichannel RS-232 Drivers/Receivers
  • MAX203 - +5V-Powered / Multichannel RS-232 Drivers/Receivers
  • MAX205 - +5V RS-232 Transceivers with 0.1uF External Capacitors

Full PDF Text Transcription

Click to expand full text
MAX200–MAX209/ MAX211/MAX213 +5V, RS-232 Transceivers with 0.1μF External Capacitors General Description MAX200-MAX209, MAX211, and MAX213 are a family of RS-232 and V.28 transceivers with integrated charge pump circuitry for single +5V supply operation. The drivers maintain the ±5V EIA/TIA-232E output signal levels at data rates in excess of 120kbps when loaded in accordance with the EIA/TIA-232E specification. The MAX211 and MAX213 are available in a 28-pin, wide small-outline (SO) package and a 28-pin shrink smalloutline (SSOP) package, which occupies only 40% of the area of the SO. The MAX207 is available in a 24-pin SO package and a 24-pin SSOP. The MAX203 and MAX205 use no external components and are recommended for applications with limited circuit board space.
