MAX20403 Fully Integrated Synchronous Silent Switcher Buck Converters

The MAX20402/MAX20403 ICs are tiny, low-EMI emission, synchronous Silent Switcher® buck converters with integrated high-side and low-side switches. The MAX20402/MAX20403 deliver up to 2.5A/3.5A over a wide 3V to 36V input voltage range. Voltage quality can be monitored by observing the PGOOD signal..

MAX20403 Features

* the MAXQ® power architecture, which provides precision transient performance and phase margin. This allows obtaining the maximum power, performance, and precision while minimizing system cost for any specific application. The MAX20402/MAX20403 are available in a small, 3mm x 3mm FC2QFN package and u

MAX20403 Datasheet (1.52 MB)

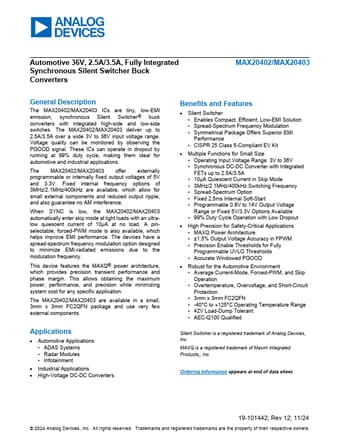

MAX20403 Datasheet Preview — Preview of MAX20403 PDF

Datasheet Details

Part number:

MAX20403

Manufacturer:

Analog Devices ↗

File Size:

1.52 MB

Description:

Fully integrated synchronous silent switcher buck converters.
