MAX2043 - Low LO Leakage Base-Station Rx/Tx Mixer

Datasheet Summary

Features

  • o +31dBm Typical 3rd-Order Input Intercept Point o +23dBm Typical Input 1dB Compression Point o 1700MHz to 3000MHz RF Frequency Range o 1900MHz to 3000MHz LO Frequency Range o DC to 350MHz IF Frequency Range o 7.5dB Typical Conversion Loss o 7.8dB Typical Noise Figure o -160dBc/Hz LO Noise o -52dBm LO Leakage at RF Port o 67dBc LO ± 2IF Spurious Suppression o -3dBm to +6dBm LO Drive o +5V Single-Supply Operation o Built-In SPDT LO Switch with 43dB LO1 to LO2 Isolation and 50ns Switching Time o I.

📥 Download Datasheet

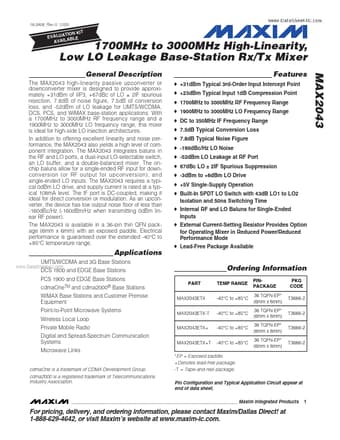

Datasheet preview – MAX2043

Datasheet Details

Part number MAX2043
Manufacturer Maxim Integrated Products
File Size 432.22 KB
Description Low LO Leakage Base-Station Rx/Tx Mixer
Datasheet download datasheet MAX2043 Datasheet
Additional preview pages of the MAX2043 datasheet.

📁 Similar Datasheet

  • MAX20430 - Four-Output Mini PMICs (Analog Devices)
  • MAX204 - +5V RS-232 Transceivers with 0.1uF External Capacitors (Maxim)
  • MAX20402 - Fully Integrated Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20403 - Fully Integrated Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20404 - Automotive 36V Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20405 - Automotive 36V Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20406 - Automotive 36V Synchronous Silent Switcher Buck Converters (Analog Devices)
  • MAX20408 - Fully Integrated Buck Converters (Analog Devices)
  • MAX20408 - Automotive 36V 8A/10A Fully-Integrated Buck Converter (Maxim Integrated)
  • MAX20408E - Fully Integrated Buck Converters (Analog Devices)
Other Datasheets by Maxim Integrated Products
  • MAX2041 - Upconversion / Downconversion Mixer
  • MAX2042 - 2000MHz to 3000MHz Upconversion/Downconversion Mixer
  • MAX2044 - 2300MHz to 4000MHz Upconversion/Downconversion Mixer
  • MAX2045 - High-Gain Vector Multipliers
  • MAX2046 - High-Gain Vector Multipliers
  • MAX2047 - High-Gain Vector Multipliers
  • MAX2010 - 500MHz to 1100MHz Adjustable RF Predistorter
  • MAX2014 - 75dB Logarithmic Detector/Controller

Full PDF Text Transcription

Click to expand full text
19-3908; Rev 0; 12/05 KIT ATION EVALU E L B A IL AVA 1700MHz to 3000MHz High-Linearity, Low LO Leakage Base-Station Rx/Tx Mixer General Description Features o +31dBm Typical 3rd-Order Input Intercept Point o +23dBm Typical Input 1dB Compression Point o 1700MHz to 3000MHz RF Frequency Range o 1900MHz to 3000MHz LO Frequency Range o DC to 350MHz IF Frequency Range o 7.5dB Typical Conversion Loss o 7.
