MAX20404 - Automotive 36V Synchronous Silent Switcher Buck Converters

Datasheet Summary

Description

The MAX20404/MAX20405/MAX20406/MAX20406E ICs are tiny, low EMI emission, synchronous Silent Switcher® buck converters with integrated high-side and low-side switches.

The ICs are designed to deliver up to 6A with wide input voltages range from 3V to 36V.

Features

  • the MAXQ® power architecture, which provides precision transient performance and phase margin. This allows obtaining the maximum power, performance, and precision while minimizing system cost for any specific.

📥 Download Datasheet

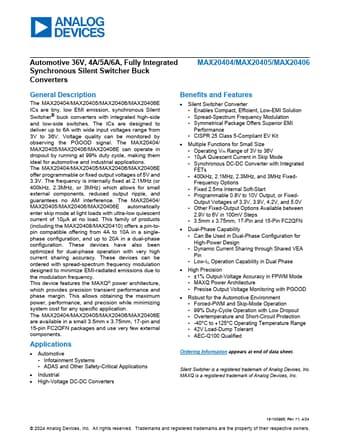

Datasheet preview – MAX20404

Datasheet Details

Part number MAX20404
Manufacturer Analog Devices
File Size 3.28 MB
Description Automotive 36V Synchronous Silent Switcher Buck Converters
Datasheet download datasheet MAX20404 Datasheet
Additional preview pages of the MAX20404 datasheet.

📁 Similar Datasheet

  • MAX20408 - Automotive 36V 8A/10A Fully-Integrated Buck Converter (Maxim Integrated)
  • MAX204 - +5V RS-232 Transceivers with 0.1uF External Capacitors (Maxim)
  • MAX2041 - Upconversion / Downconversion Mixer (Maxim Integrated Products)
  • MAX20410 - Automotive 36V 8A/10A Fully-Integrated Buck Converter (Maxim Integrated)
  • MAX2042 - 2000MHz to 3000MHz Upconversion/Downconversion Mixer (Maxim Integrated Products)
  • MAX2042A - 1600MHz to 3900MHz Upconversion/Downconversion Mixer (Maxim Integrated)
  • MAX2043 - Low LO Leakage Base-Station Rx/Tx Mixer (Maxim Integrated Products)
  • MAX2044 - 2300MHz to 4000MHz Upconversion/Downconversion Mixer (Maxim Integrated Products)
  • MAX2045 - High-Gain Vector Multipliers (Maxim Integrated Products)
  • MAX2046 - High-Gain Vector Multipliers (Maxim Integrated Products)
Other Datasheets by Analog Devices
  • MAX20402 - Fully Integrated Synchronous Silent Switcher Buck Converters
  • MAX20403 - Fully Integrated Synchronous Silent Switcher Buck Converters
  • MAX20405 - Automotive 36V Synchronous Silent Switcher Buck Converters
  • MAX20406 - Automotive 36V Synchronous Silent Switcher Buck Converters
  • MAX20408 - Fully Integrated Buck Converters
  • MAX20408E - Fully Integrated Buck Converters
  • MAX20410 - Fully Integrated Buck Converters
  • MAX20410E - Fully Integrated Buck Converters

Full PDF Text Transcription

Click to expand full text
Automotive 36V, 4A/5A/6A, Fully Integrated Synchronous Silent Switcher Buck Converters MAX20404/MAX20405/MAX20406 General Description The MAX20404/MAX20405/MAX20406/MAX20406E ICs are tiny, low EMI emission, synchronous Silent Switcher® buck converters with integrated high-side and low-side switches. The ICs are designed to deliver up to 6A with wide input voltages range from 3V to 36V. Voltage quality can be monitored by observing the PGOOD signal. The MAX20404/ MAX20405/MAX20406/MAX20406E can operate in dropout by running at 99% duty cycle, making them ideal for automotive and industrial applications. The MAX20404/MAX20405/MAX20406/MAX20406E offer programmable or fixed output voltages of 5V and 3.3V. The frequency is internally fixed at 2.1MHz (or 400kHz, 2.
