MAX20408E - Fully Integrated Buck Converters

This page provides the datasheet information for the MAX20408E, a member of the MAX20408 Fully Integrated Buck Converters family.

Datasheet Summary

Description

The MAX20408/MAX20410/MAX20408E/MAX20410E are automotive, highly-integrated synchronous buck converters with internal high-side and low-side switches.

The ICs deliver up to 8A/10A with input voltages from 3.0V to 36V.

The voltage quality can be monitored by the PGOOD signal.

Features

  • High-Power DC-DC Converter in Small Solution Size.
  • 8A/10A Maximum Output Current.
  • 400kHz and 2.1MHz Fixed Frequency Options.
  • Fixed 2.5ms Soft-Start Time.
  • 34ns Minimum On-Time.
  • Programmable 0.8V to 10V Output with 400kHz, 0.8V to 6V Output with 2.1MHz, or Fixed Output Options.
  • ±1% Output Voltage Accuracy (MAX20408E/ MAX20410E).
  • Accurate EN Threshold for Programmable UVLO (MAX20408E/MAX20410E).
  • Symmetric and Balanced SUP.

📥 Download Datasheet

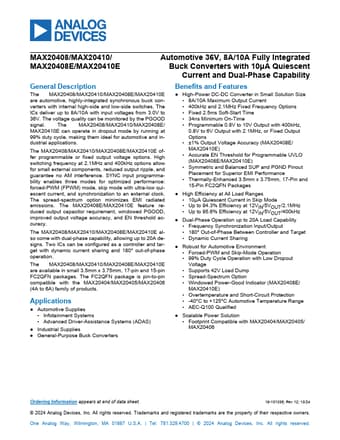

Datasheet preview – MAX20408E

Datasheet Details

Part number MAX20408E
Manufacturer Analog Devices
File Size 1.53 MB
Description Fully Integrated Buck Converters
Datasheet download datasheet MAX20408E Datasheet
Additional preview pages of the MAX20408E datasheet.

📁 Similar Datasheet

  • MAX20408 - Automotive 36V 8A/10A Fully-Integrated Buck Converter (Maxim Integrated)
  • MAX204 - +5V RS-232 Transceivers with 0.1uF External Capacitors (Maxim)
  • MAX2041 - Upconversion / Downconversion Mixer (Maxim Integrated Products)
  • MAX20410 - Automotive 36V 8A/10A Fully-Integrated Buck Converter (Maxim Integrated)
  • MAX2042 - 2000MHz to 3000MHz Upconversion/Downconversion Mixer (Maxim Integrated Products)
  • MAX2042A - 1600MHz to 3900MHz Upconversion/Downconversion Mixer (Maxim Integrated)
  • MAX2043 - Low LO Leakage Base-Station Rx/Tx Mixer (Maxim Integrated Products)
  • MAX2044 - 2300MHz to 4000MHz Upconversion/Downconversion Mixer (Maxim Integrated Products)
  • MAX2045 - High-Gain Vector Multipliers (Maxim Integrated Products)
  • MAX2046 - High-Gain Vector Multipliers (Maxim Integrated Products)
Other Datasheets by Analog Devices
  • MAX20408 - Fully Integrated Buck Converters
  • MAX20402 - Fully Integrated Synchronous Silent Switcher Buck Converters
  • MAX20403 - Fully Integrated Synchronous Silent Switcher Buck Converters
  • MAX20404 - Automotive 36V Synchronous Silent Switcher Buck Converters
  • MAX20405 - Automotive 36V Synchronous Silent Switcher Buck Converters
  • MAX20406 - Automotive 36V Synchronous Silent Switcher Buck Converters
  • MAX20410 - Fully Integrated Buck Converters
  • MAX20410E - Fully Integrated Buck Converters

Full PDF Text Transcription

Click to expand full text
MAX20408/MAX20410/ MAX20408E/MAX20410E Automotive 36V, 8A/10A Fully Integrated Buck Converters with 10μA Quiescent Current and Dual-Phase Capability General Description The MAX20408/MAX20410/MAX20408E/MAX20410E are automotive, highly-integrated synchronous buck converters with internal high-side and low-side switches. The ICs deliver up to 8A/10A with input voltages from 3.0V to 36V. The voltage quality can be monitored by the PGOOD signal. The MAX20408/MAX20410/MAX20408E/ MAX20410E can operate in dropout mode by running at 99% duty cycle, making them ideal for automotive and industrial applications. The MAX20408/MAX20410/MAX20408E/MAX20410E offer programmable or fixed output voltage options. High switching frequency at 2.
