MAX5492 - 10kOHM Precision-Matched Resistor-Divider

Datasheet Summary

Description

The MAX5492 precision resistor-divider consists of two accurately matched resistors with access to the ends and center of the divider.

This device offers excellent resistance matching of 0.035% (A grade), 0.05% (B grade), and 0.1% (C grade).

Features

  • ±2kV Human Body Model electrostatic discharge (ESD) protection to ensure against realworld ESD events. The MAX5492 is ideal for precision gain-setting.

📥 Download Datasheet

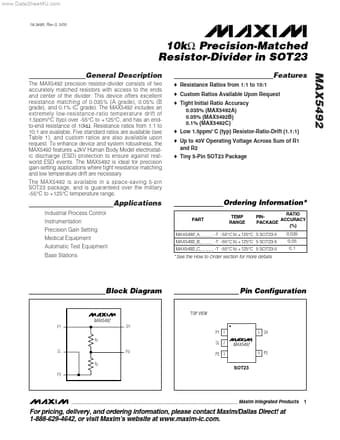

Datasheet preview – MAX5492

Datasheet Details

Part number MAX5492
Manufacturer Maxim Integrated Products
File Size 167.24 KB
Description 10kOHM Precision-Matched Resistor-Divider
Datasheet download datasheet MAX5492 Datasheet
Additional preview pages of the MAX5492 datasheet.

📁 Similar Datasheet

  • MAX5490 - 100k Precision-Matched Resistor-Divider (Maxim)
  • MAX5491 - Precision-Matched Resistor-Divider in SOT23 (Maxim)
  • MAX549A - +2.5V to +5.5V / Low-Power / Single/Dual / 8-Bit Voltage-Output DACs (Maxim)
  • MAX5400 - 256-Tap SOT-PoT / Low-Drift Digital Potentiometers in SOT23 (Maxim)
  • MAX5401 - 256-Tap SOT-PoT / Low-Drift Digital Potentiometers in SOT23 (Maxim)
  • MAX5402 - 256-Tap / PoT / Low-Drift / Digital Potentiometer (Maxim)
  • MAX5403 - Dual 256-Tap / Low-Drift / Digital Potentiometers (Maxim)
  • MAX5404 - Dual 256-Tap / Low-Drift / Digital Potentiometers (Maxim)
  • MAX5405 - Dual 256-Tap / Low-Drift / Digital Potentiometers (Maxim)
  • MAX5407 - 32-Tap Audio Logarithmic Taper Digital Potentiometer (Maxim)
Other Datasheets by Maxim Integrated Products
  • MAX5494 - 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers
  • MAX5495 - 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers
  • MAX5496 - 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers
  • MAX5497 - 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers
  • MAX5498 - 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers
  • MAX5499 - 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers
  • MAX5406 - Audio Processor
  • MAX5417 - 256-Tap Nonvolatile I2C-Interface Digital Potentiometers

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com 19-3695; Rev 0; 5/05 10kΩ Precision-Matched Resistor-Divider in SOT23 MAX5492 General Description The MAX5492 precision resistor-divider consists of two accurately matched resistors with access to the ends and center of the divider. This device offers excellent resistance matching of 0.035% (A grade), 0.05% (B grade), and 0.1% (C grade). The MAX5492 includes an extremely low-resistance-ratio temperature drift of 1.5ppm/°C (typ) over -55°C to +125°C, and has an endto-end resistance of 10kΩ. Resistance ratios from 1:1 to 10:1 are available. Five standard ratios are available (see Table 1), and custom ratios are also available upon request.
