MAX5491 - Precision-Matched Resistor-Divider in SOT23

Datasheet Summary

Description

The MAX5491 precision resistor-divider consists of two accurately matched resistors with access to the ends and center of the divider.

This device offers excellent resistance matching of 0.035% (A grade), 0.05% (B grade), and 0.1% (C grade).

Features

  • ±2kV Human Body Model electrostatic discharge (ESD) protection to ensure against real-world ESD events. The MAX5491 is ideal for precision gain-setting.

📥 Download Datasheet

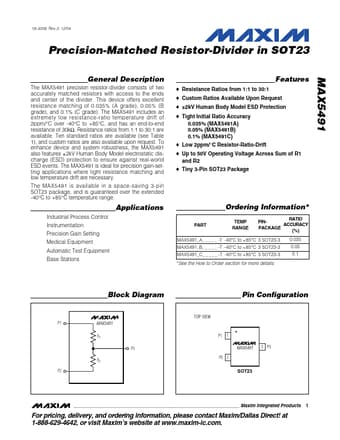

Datasheet preview – MAX5491

Datasheet Details

Part number MAX5491
Manufacturer Maxim
File Size 155.43 KB
Description Precision-Matched Resistor-Divider in SOT23
Datasheet download datasheet MAX5491 Datasheet
Additional preview pages of the MAX5491 datasheet.

📁 Similar Datasheet

  • MAX5492 - 10kOHM Precision-Matched Resistor-Divider (Maxim Integrated Products)
  • MAX5494 - 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers (Maxim Integrated Products)
  • MAX5495 - 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers (Maxim Integrated Products)
  • MAX5496 - 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers (Maxim Integrated Products)
  • MAX5497 - 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers (Maxim Integrated Products)
  • MAX5498 - 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers (Maxim Integrated Products)
  • MAX5499 - 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers (Maxim Integrated Products)
  • MAX5406 - Audio Processor (Maxim Integrated Products)
  • MAX5409 - Log Taper Digital Potentiometers (Maxim Integrated)
  • MAX5410 - Log Taper Digital Potentiometers (Maxim Integrated)
Other Datasheets by Maxim
  • MAX5490 - 100k Precision-Matched Resistor-Divider
  • MAX549A - +2.5V to +5.5V / Low-Power / Single/Dual / 8-Bit Voltage-Output DACs
  • MAX5400 - 256-Tap SOT-PoT / Low-Drift Digital Potentiometers in SOT23
  • MAX5401 - 256-Tap SOT-PoT / Low-Drift Digital Potentiometers in SOT23
  • MAX5402 - 256-Tap / PoT / Low-Drift / Digital Potentiometer
  • MAX5403 - Dual 256-Tap / Low-Drift / Digital Potentiometers
  • MAX5404 - Dual 256-Tap / Low-Drift / Digital Potentiometers
  • MAX5405 - Dual 256-Tap / Low-Drift / Digital Potentiometers

Full PDF Text Transcription

Click to expand full text
19-3009; Rev 3; 12/04 Precision-Matched Resistor-Divider in SOT23 MAX5491 General Description The MAX5491 precision resistor-divider consists of two accurately matched resistors with access to the ends and center of the divider. This device offers excellent resistance matching of 0.035% (A grade), 0.05% (B grade), and 0.1% (C grade). The MAX5491 includes an extremely low resistance-ratio temperature drift of 2ppm/°C over -40°C to +85°C, and has an end-to-end resistance of 30kΩ. Resistance ratios from 1:1 to 30:1 are available. Ten standard ratios are available (see Table 1), and custom ratios are also available upon request.
