MAX5498 Datasheet, Potentiometers, Maxim Integrated Products

MAX5498 Features

• Potentiometers
• Wiper Position Stored in Nonvolatile Memory and Recalled Upon Power-Up
• 16-Pin, 5mm x 5mm x 0.8mm TQFN Package
• 35ppm/°C End-to-End Resistance Temperature Co

PDF File Details

Part number:

MAX5498

Manufacturer:

Maxim Integrated ↗ Products

File Size:

678.00kb

Download:

📄 Datasheet

Description:

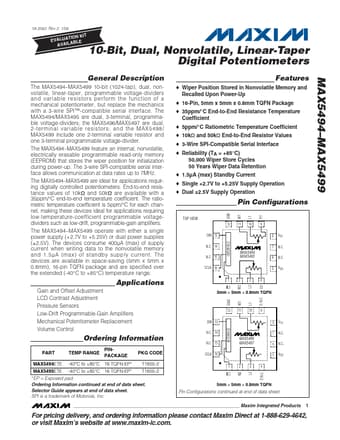

10-bit - dual - nonvolatile/ linear-taper digital potentiometers. The MAX5494  –MAX5499 10-bit (1024-tap), dual, nonvolatile, linear-taper, programmable voltage-dividers and variable re

MAX5498 Application

• Applications requiring digitally controlled potentiometers. End-to-end resistance values of 10kΩ and 50kΩ are available with a 35ppm/°C end-to-end t
