MAX5494, 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers

19-3562; Rev 1; 6/05 www.DataSheet4U.com 10-Bit, Dual, Nonvolatile, Linear-Taper Digital Potentiometers General .
The MAX5494. MAX5499 10-bit (1024-tap), dual, nonvolatile, linear-taper, programmable voltage-dividers and variable resistors perform the funct.

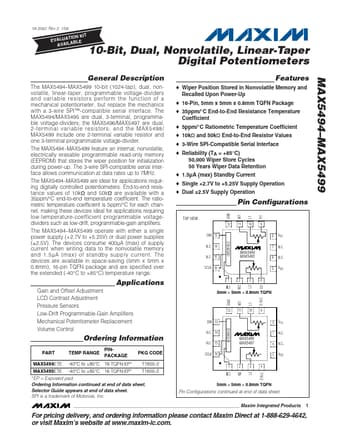

datasheet Preview Page 1 from Datasheet4u.com

MAX5494_MaximIntegratedProducts.pdf

MAX5494 Datasheet Preview — Preview of MAX5494 PDF

Datasheet Details

Part number:

MAX5494

Manufacturer:

Maxim Integrated ↗ Products

File Size:

678.00 KB

Description:

10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers

Features

* Wiper Position Stored in Nonvolatile Memory and Recalled Upon Power-Up
* 16-Pin, 5mm x 5mm x 0.8mm TQFN Package
* 35ppm/°C End-to-End Resistance Temperature Coefficient
* 5ppm/°C Ratiometric Temperature Coefficient
* 10kΩ and 50kΩ End-to-End Resistor Values

Applications

* requiring digitally controlled potentiometers. End-to-end resistance values of 10kΩ and 50kΩ are available with a 35ppm/°C end-to-end temperature coefficient. The ratiometric temperature coefficient is 5ppm/°C for each channel, making these devices ideal for applications requiring low-temperature-co
