MAX5490 - 100k Precision-Matched Resistor-Divider

Datasheet Summary

Description

The MAX5490 precision resistor-divider consists of two accurately matched resistors with access to the ends and center of the divider.

This device offers excellent resistance matching of 0.035% (A grade), 0.05% (B grade), and 0.1% (C grade).

Maxim

📥 Download Datasheet

Datasheet Details

Part number	MAX5490
Manufacturer	Maxim
File Size	172.56 KB
Description	100k Precision-Matched Resistor-Divider
Datasheet	MAX5490 Datasheet
Additional preview pages of the MAX5490 datasheet.

📁 Similar Datasheet

MAX5492 - 10kOHM Precision-Matched Resistor-Divider (Maxim Integrated Products)
MAX5494 - 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers (Maxim Integrated Products)
MAX5495 - 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers (Maxim Integrated Products)
MAX5496 - 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers (Maxim Integrated Products)
MAX5497 - 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers (Maxim Integrated Products)
MAX5498 - 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers (Maxim Integrated Products)
MAX5499 - 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers (Maxim Integrated Products)
MAX5406 - Audio Processor (Maxim Integrated Products)
MAX5409 - Log Taper Digital Potentiometers (Maxim Integrated)
MAX5410 - Log Taper Digital Potentiometers (Maxim Integrated)

Other Datasheets by Maxim

MAX5491 - Precision-Matched Resistor-Divider in SOT23
MAX549A - +2.5V to +5.5V / Low-Power / Single/Dual / 8-Bit Voltage-Output DACs
MAX5400 - 256-Tap SOT-PoT / Low-Drift Digital Potentiometers in SOT23
MAX5401 - 256-Tap SOT-PoT / Low-Drift Digital Potentiometers in SOT23
MAX5402 - 256-Tap / PoT / Low-Drift / Digital Potentiometer
MAX5403 - Dual 256-Tap / Low-Drift / Digital Potentiometers
MAX5404 - Dual 256-Tap / Low-Drift / Digital Potentiometers
MAX5405 - Dual 256-Tap / Low-Drift / Digital Potentiometers

Full PDF Text Transcription

Click to expand full text

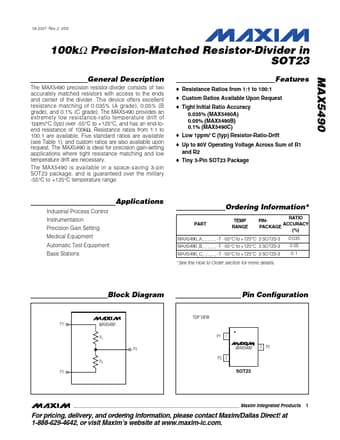

19-3337; Rev 1; 8/04 100kΩ Precision-Matched Resistor-Divider in SOT23 MAX5490 General Description The MAX5490 precision resistor-divider consists of two accurately matched resistors with access to the ends and center of the divider. This device offers excellent resistance matching of 0.035% (A grade), 0.05% (B grade), and 0.1% (C grade). The MAX5490 provides an extremely low resistance-ratio temperature drift of 1ppm/°C (typ) over -40°C to +85°C, and has an end-toend resistance of 100kΩ. Resistance ratios from 1:1 to 100:1 are available. Five standard ratios are available (see Table 1), and custom ratios are also available upon request. The MAX5490 is ideal for precision gain-setting applications where tight resistance matching and low temperature drift are necessary.
