MAX8760 Dual-Phase / Quick-PWM Controller for AMD Mobile Turion 64 CPU Core Power Supplies

The MAX8760 is a dual-phase, Quick-PWM™, stepdown controller for 6-bit VID AMD Mobile Turion™ 64 CPU core supplies. Dual-phase operation reduces input ripple current requirements and output voltage ripple while easing component selection and layout difficulties. The quick-PWM control scheme provides.

MAX8760 Features

* softstart and power-up sequencing, and soft-shutdown. The MAX8760 also features independent four-level logic inputs for setting the suspend voltage (S0, S1). The MAX8760 includes output undervoltage protection, thermal protection, and voltage regulator power-OK (VROK) output. When any of these prote

MAX8760_MaximIntegratedProducts.pdf

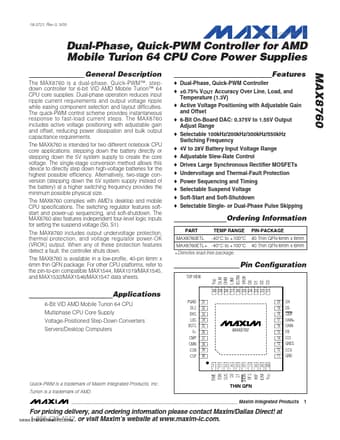

Preview of MAX8760 PDF
MAX8760 Datasheet Preview Page 2 MAX8760 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX8760

Manufacturer:

Maxim Integrated ↗ Products

File Size:

893.22 KB

Description:

Dual-phase / quick-pwm controller for amd mobile turion 64 cpu core power supplies.
