MAX8765 Description

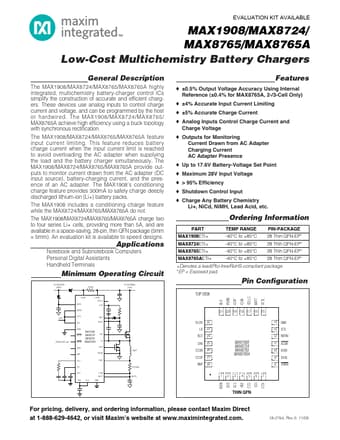

19-2764; Rev 5; 11/09 KIT ATION EVALU E L B A AVAIL www.DataSheet4U.com Low-Cost Multichemistry Battery Chargers General .
The MAX1908/MAX8724/MAX8765/MAX8765A highly integrated, multichemistry battery-charger control ICs simplify the construction of accurate and efficient.
MAX8765 Features
* o ±0.5% Output Voltage Accuracy Using Internal Reference (±0.4% for MAX8765A, 2-/3-Cell Only) o ±4% Accurate Input Current Limiting o ±5% Accurate Charge Current o Analog Inputs Control Charge Current and Charge Voltage o Outputs for Monitoring Current Drawn from AC Adapter Charging Current AC Adapt
MAX8765 Applications
* Notebook and Subnotebook Computers Personal Digital Assistants Handheld Terminals
Minimum Operating Circuit
AC ADAPTER INPUT 0.01Ω TO EXTERNAL LOAD
+Denotes a lead(Pb)-free/RoHS-compliant package.
* EP = Exposed pad. Pin Configuration
TOP VIEW
CELLS PGND VCTL 15 14 13 12
GND ICTL
CELLS DCIN R
