MLX10402

Motor Driver IC

MLX10402 Features

* Small package (SOIC16)

* Current limitation

* Low power consumption

* Thermal Overload protection

* Microcontroller compatible Applications

* Small DC inductive motor driver

* Lamp driver Ordering Information Part No. MLX10402 Temperature

MLX10402 General Description

The IC drives directly small DC inductive or active loads like electric motors, lamps, etc. There are four main driving modes. These are set by digital inputs “In1” and “In2” : IN1 IN2 M1 M2 Driving Mode 1 0 1 0 Forward 0 1 0 1 Reverse 1 1 0 0 Brake (Motor shorted) 0 0 Z Z Off (Motor disabled) The c.

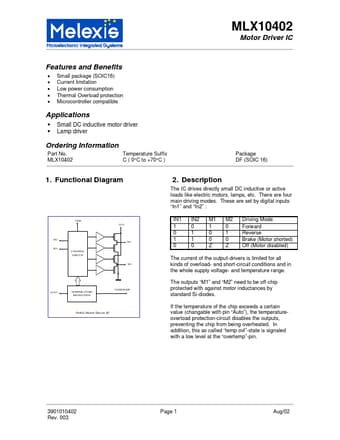

MLX10402 Datasheet (63.11 KB)

Preview of MLX10402 PDF

Datasheet Details

Part number:

MLX10402

Manufacturer:

Melexis

File Size:

63.11 KB

Description:

Motor driver ic.
