MLX10407

5-Channel Gauge Driver

MLX10407 Features

*   Supply voltage up to 12 V   Interface directly with 5 V CMOS logic MCUs   Serial link   Can drive two 360° actuators & three 90° actuators simultaneously   Open circuit / short-circuit detection of the drivers outputs   Small size (SO24 package)   Real Time Angle Tracking Applications   Logometer

MLX10407 General Description

The 10407 is a MCU peripheral for logometers control using SIN/COS PWM commands. The circuit controls two independent sets of CMOS power bridges. A ten-bit angle is displayed with a 9 bit per quadrant resolution PWM whose frequency is set by a crystal oscillator. A power-on self test detects open or.

MLX10407 Datasheet (142.45 KB)

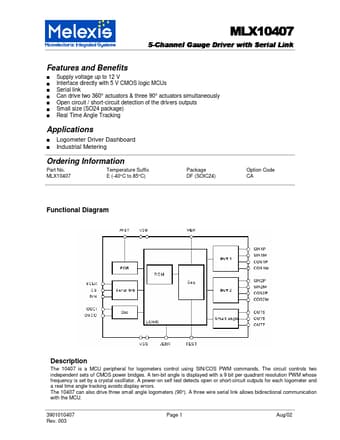

Preview of MLX10407 PDF

Datasheet Details

Part number:

MLX10407

Manufacturer:

Melexis

File Size:

142.45 KB

Description:

5-channel gauge driver.
