MLX10801

Power LED driver

Melexis

MLX10801 Features

* VS CONTR General

* Minimum number of inexpensive external components

* Auto shutdown in case of over temperature with internal or external temperature sensor

* Small package allows compact module design with minimised wire runs and short connections to achieve improved EMI p

MLX10801 General Description

The MLX10801 is a multi-purpose LED driver for high power LEDs designed for automotive applications. A lot of adjustment possibilities allow for the design of different LED applications using only a few external components. The circuit is load dump protected for a 40V load dump pulse. As a second us.

MLX10801 Datasheet (664.50 KB)

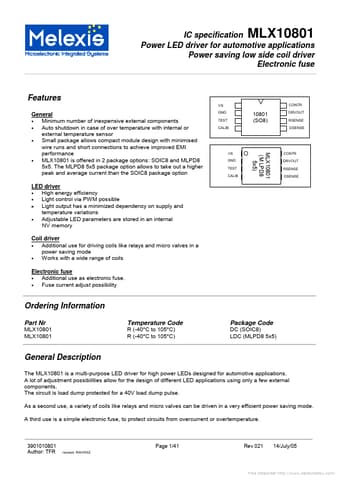

MLX10801 Datasheet Preview — Preview of MLX10801 PDF

Datasheet Details

Part number:

MLX10801

Manufacturer:

Melexis

File Size:

664.50 KB

Description:

Power led driver.
