MLX10420AA Datasheet, Driver, Melexis

MLX10420AA Features

  • Driver Supply voltage up to 12 V. Interface directly with 3.3/5 V CMOS logic µP Serial peripheral interface Can drive two air core actuators over the full 360° and one over 90° . Open circuit

PDF File Details

Part number:

MLX10420AA

Manufacturer:

Melexis

File Size:

540.57kb

Download:

📄 Datasheet

Description:

3-channel air-core gauge driver. The MLX10420 is a µP peripheral for air-core meters control using SIN/COS PWM commands. The circuit controls two independent sets of

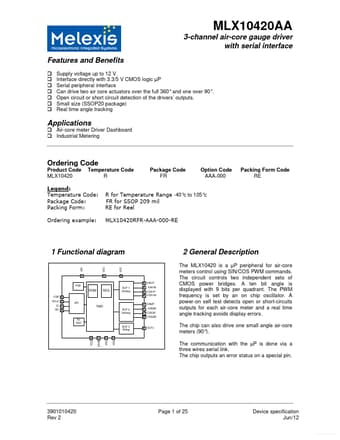

Datasheet Preview: MLX10420AA 📥 Download PDF (540.57kb)
Page 2 of MLX10420AA Page 3 of MLX10420AA

MLX10420AA Application

  • Applications Air-core meter Driver Dashboard Industrial Metering Ordering Code Product Code MLX10420 Temperature Code R Package Code FR Option Code
