MLX10410

8 Fold High Side Driver

Melexis

MLX10410 Features

* Small package (SOIC20) Short-circuit protection Diagnostic features Current limitation Low-power consumption Over-temperature protection Direct micro controller compatible Integrated free wheel diodes Applications Automotive climate Control Dashboard Industrial Actuator

MLX10410 General Description

The 10410 is a high-side driver for automotive applications. It can drive small lamps, relays, coils etc. The output current can be up to 250mA per driver (current limit at minimum 250mA). The IC will only react to commands on the bus if the CEN (chip enable) signal is high. The CEN signal has nothi.

MLX10410 Datasheet (113.35 KB)

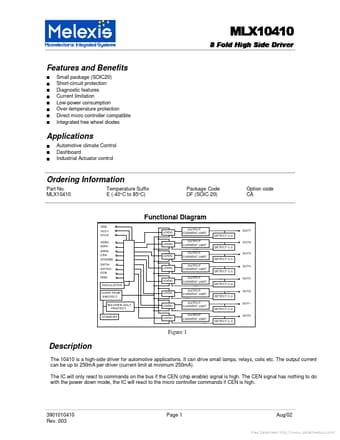

MLX10410 Datasheet Preview — Preview of MLX10410 PDF

Datasheet Details

Part number:

MLX10410

Manufacturer:

Melexis

File Size:

113.35 KB

Description:

8 fold high side driver.
