SY10H350

PECL-to-TTL TRANSLATOR

SY10H350 Features

* s Single 5V power supply s Propagation delay, 3.5ns typical s Fully compatible with MC10H350 s Available in 20-pin PLCC package BLOCK DIAGRAM 4 5 7 8 14 15 17 18 12 3 9 13 19 VCC (+5 VDC) = Pins 2 and 20; GND = Pin 10 DESCRIPTION The SY10H350 consists of 4 translators with differential inputs an

SY10H350 General Description

The SY10H350 consists of 4 translators with differential inputs and TTL outputs. The 3-state outputs can be disabled by applying a HIGH TTL logic level on the common OE input. The SY10H350 is designed to be used primarily in systems incorporating both ECL and TTL logic operating off a common power s.

SY10H350 Datasheet (86.99 KB)

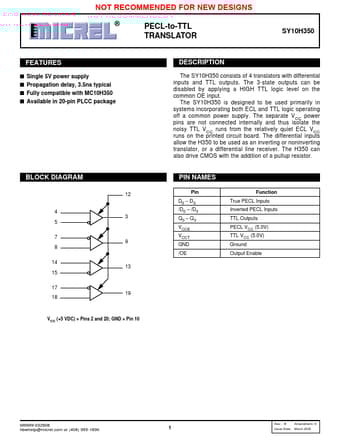

Preview of SY10H350 PDF

Datasheet Details

Part number:

SY10H350

Manufacturer:

Micrel Semiconductor

File Size:

86.99 KB

Description:

Pecl-to-ttl translator.
