SY100EL16V

5V/3.3V ECL Differential Receiver

SY100EL16V Features

* 3.3V and 5V Power Supply Options

* 250 ps Propagation Delay (typical)

* High Bandwidth Output Transitions

* Internal 75 KΩ Input Pull-Down Resistors

* Available in 8-pin (3x3 mm) MSOP and SOIC Package General Description The SY100EL16V is a differential rec

SY100EL16V General Description

The SY100EL16V is a differential receiver. With fast output transition times, the SY100EL16V is ideally suited for interfacing with high-frequency sources. The SY100EL16V provides a VBB output for either single-ended use or as a DC bias for AC coupling to the device. The VBB pin should be used only .

SY100EL16V Datasheet (667.26 KB)

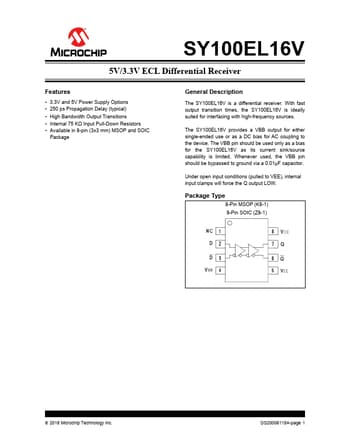

Preview of SY100EL16V PDF

Datasheet Details

Part number:

SY100EL16V

Manufacturer:

Microchip ↗

File Size:

667.26 KB

Description:

5v/3.3v ecl differential receiver.
