SY100EL16S

5V VARIABLE OUTPUT SWING DIFFERENTIAL RECEIVER

SY100EL16S Features

* s 5V power supply options s High bandwidth output transitions s Internal 75KΩ pull-down resistors on inputs s Functionally equivalent to SY10/100EL16V with variable output swing s Improved output waveform characteristics s ESD protection of 2000V s Available in 8-pin (3mm) TSSOP PIN CONFIGURATION/BL

SY100EL16S General Description

The SY100EL16S is a differential receiver with variable output swing. This device is functionally equivalent to the EL16V, with an additional input that control the output amplitude. The operating range of the EL16S control input is from VBB (max. swing) to VCC (min. swing). Control of the output sw.

SY100EL16S Datasheet (112.89 KB)

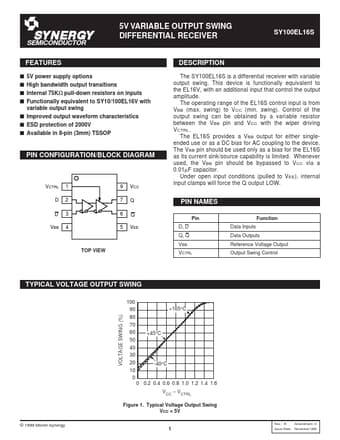

Preview of SY100EL16S PDF

Datasheet Details

Part number:

SY100EL16S

Manufacturer:

Synergy

File Size:

112.89 KB

Description:

5v variable output swing differential receiver.
