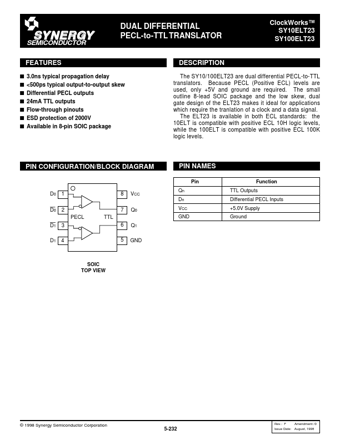

SY10ELT23 Datasheet, Translator, Synergy

SY10ELT23 Features

• Translator s s s s s s s 3.0ns typical propagation delay <500ps typical output-to-output skew Differential PECL outputs 24mA TTL outputs Flow-through pinouts ESD protection of 2000V Available in 8

PDF File Details

Part number:

SY10ELT23

Manufacturer:

Synergy

File Size:

116.76kb

Download:

📄 Datasheet

Description:

Dual differential pecl-to-ttl translator. The SY10/100ELT23 are dual differential PECL-to-TTL translators. Because PECL (Positive ECL) levels are used, only +5V and ground are

SY10ELT23 Application

• Applications which require the tranlation of a clock and a data signal. The ELT23 is available in both ECL standards: the 10ELT is compatible with p
