SY100EL11V Datasheet, Buffe, Microchip

SY100EL11V Features

  • Buffe
  • 3.3V and 5V Power Supply Options
  • 265 ps Propagation Delay (Typical)
  • 5 ps Skew (Typical) Between Outputs
  • High Bandwidth Output Transitions

PDF File Details

Part number:

SY100EL11V

Manufacturer:

Microchip ↗

File Size:

561.75kb

Download:

📄 Datasheet

Description:

5v/3.3v ecl 1:2 differential fanout buffe. The SY100EL11V is a 1:2 differential fanout gate. Having low within-device skews and output transition times, the EL11V is ideally su

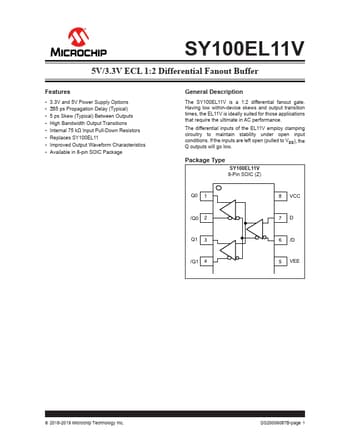

Datasheet Preview: SY100EL11V 📥 Download PDF (561.75kb)
Page 2 of SY100EL11V Page 3 of SY100EL11V

SY100EL11V Application

  • Applications that require the ultimate in AC performance. The differential inputs of the EL11V employ clamping circuitry to maintain stability under
