SY100EL29V

5V/3.3V Dual Differential Data and Clock D Flip-Flop

SY100EL29V Features

* 3.3V and 5V Power Supply Option

* Differential D, CLK and Q

* Extended VEE Range of

* 3.0V to

* 5.5V

* VBB Output for Single-Ended Use

* 1100 MHz Min. Toggle Frequency

* Asynchronous Reset and Set

* Available in 20-Pin SOIC Pack

SY100EL29V General Description

The SY100EL29V is a dual differential register with differential data (inputs and outputs) and clock. The registers are triggered by a positive transition of the positive clock (CLK) input. A HIGH on the Reset (Rx) asynchronously resets the appropriate register so that the Q outputs go LOW. A HIGH o.

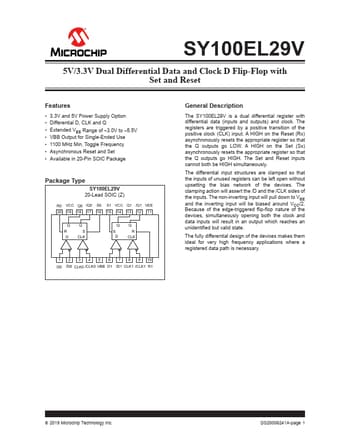

SY100EL29V Datasheet (714.10 KB)

Preview of SY100EL29V PDF

Datasheet Details

Part number:

SY100EL29V

Manufacturer:

Microchip ↗

File Size:

714.10 KB

Description:

5v/3.3v dual differential data and clock d flip-flop.
