SY100EL16VS

3.3V/5V Variable Output Swing Differential Receiver

Microchip

SY100EL16VS Features

* 3.3V and 5V Power Supply Options

* High Bandwidth Output Transitions

* Internal 75 kΩ Pull-Down Resistors on D Inputs

* Functionally Equivalent to SY100EL16V with Variable Output Swing

* Improved Output Waveform Characteristics

* Available in 8-Pin (

SY100EL16VS General Description

The SY100EL16VS is a differential receiver with variable output swing. The device is functionally equivalent to the EL16V device with an input that controls the amplitude of the outputs. The operational range of the EL16VS control input is from VBB (max. swing) to VCC (min. swing). Simple control of.

SY100EL16VS Datasheet (849.88 KB)

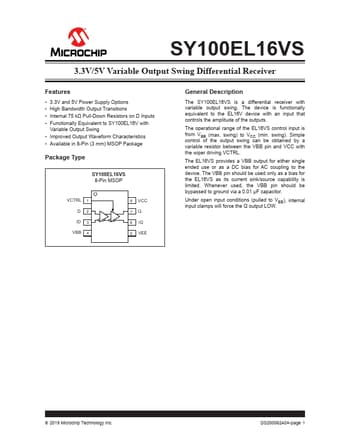

SY100EL16VS Datasheet Preview — Preview of SY100EL16VS PDF

Datasheet Details

Part number:

SY100EL16VS

Manufacturer:

Microchip ↗

File Size:

849.88 KB

Description:

3.3v/5v variable output swing differential receiver.
