SY54017AR

Low Voltage 1.2V/1.8V CML 2:1 MUX

SY54017AR Features

* ∑ 1.2V/1.8V CML 2:1 MUX ∑ Guaranteed AC performance over temperature and voltage:

* DC-to- > 3.2Gbps throughput

SY54017AR General Description

The SY54017AR is a fully differential, low voltage 1.2V/1.8V CML 2:1 MUX. The SY54017AR can process clock signals as fast as 3.2GHz or data patterns up to 3.2Gbps. The differential input includes Micrel’s unique, 3-pin input termination architecture that interfaces to LVPECL, LVDS or CML differentia.

SY54017AR Datasheet (611.98 KB)

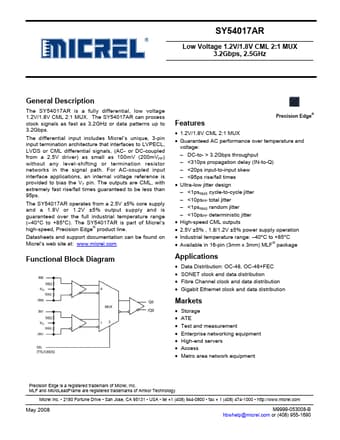

Preview of SY54017AR PDF

Datasheet Details

Part number:

SY54017AR

Manufacturer:

Micrel Semiconductor

File Size:

611.98 KB

Description:

Low voltage 1.2v/1.8v cml 2:1 mux.
