SY54017R

Low Voltage 1.2V/1.8V CML 2:1 MUX

SY54017R Features

* 1.2V/1.8V CML 2:1 MUX with Fail Safe Inputs

* Guaranteed AC performance over temperature and voltage:

* DC-to- > 3.2Gbps throughput

SY54017R General Description

The SY54017R is a fully differential, low voltage 1.2V/1.8V CML 2:1 MUX with Fail Safe Inputs. The SY54017R can process clock signals as fast as 2.5GHz or data patterns up to 3.2Gbps. The differential input includes Micrel’s unique, 3-pin input termination architecture that interfaces to LVPECL, LVD.

SY54017R Datasheet (697.67 KB)

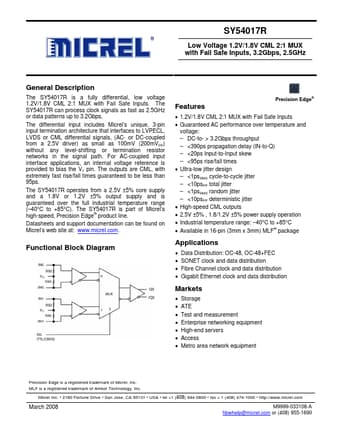

Preview of SY54017R PDF

Datasheet Details

Part number:

SY54017R

Manufacturer:

Micrel Semiconductor

File Size:

697.67 KB

Description:

Low voltage 1.2v/1.8v cml 2:1 mux.
