SY55859L Datasheet, Switch, Micrel Semiconductor

SY55859L Features

  • Switch SuperLiteTM
  • Pin-for-pin, plug-in compatible to the MAX3840
  • Supply voltage operation: +3.3V±10%
  • Low Jitter: -2psRMS random jitter -5psPP deterministic jit

PDF File Details

Part number:

SY55859L

Manufacturer:

Micrel Semiconductor

File Size:

297.82kb

Download:

📄 Datasheet

Description:

2.7gbps dual 2x2 crosspoint switch. The SY55859L is a dual CML 2x2 crosspoint switch optimized for high-speed data and/or clock applications (up to 3.2Gbps or 2.7GHz) w

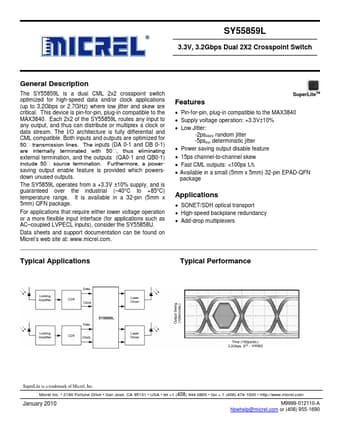

Datasheet Preview: SY55859L 📥 Download PDF (297.82kb)
Page 2 of SY55859L Page 3 of SY55859L

SY55859L Application

  • Applications (up to 3.2Gbps or 2.7GHz) where low jitter and skew are critical. This device is pin-for-pin, plug-in compatible to the MAX3840. Each 2
