SY87700V

CLOCK AND DATA RECOVERY

SY87700V Features

* s 3.3V and 5V power supply options s SONET/SDH/ATM compatible s Clock and data recovery from 32Mbps up to 175Mbps NRZ data stream, clock generation from 32Mbps to 175Mbps s Two on-chip PLLs: one for clock generation and another for clock recovery s Selectable reference frequencies s Differential PE

SY87700V General Description

The SY87700V is a complete Clock Recovery and Data Retiming integrated circuit for data rates from 32Mbps up to 175Mbps NRZ. The device is ideally suited for SONET/SDH/ATM applications and other high-speed data transmission systems. Clock recovery and data retiming is performed by synchronizing the .

SY87700V Datasheet (140.39 KB)

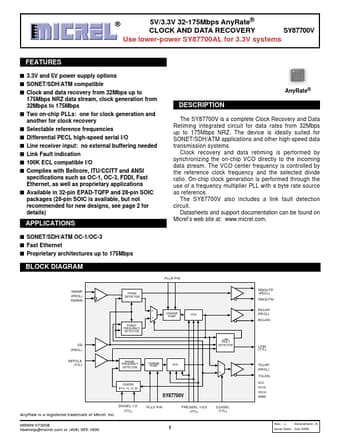

Preview of SY87700V PDF

Datasheet Details

Part number:

SY87700V

Manufacturer:

Micrel Semiconductor

File Size:

140.39 KB

Description:

Clock and data recovery.
