SY8718A1

2.0A Synchronous Step Down Regulator

SY8718A1 Features

* Wide Input Range: 4V-23V

* Up to 2.0A Output Current Capability

* Low RDS(ON) for Internal Switches High Side/Low Side:125mΩ/75mΩ

* Fixed 1MHz Switching Frequency

* Cycle by Cycle 3.5A Peak Current Limit for High Side and 2.5A Valley Current Limit for Low Side

* High Accura

SY8718A1 General Description

The SY8718A1 is a high efficiency synchronous stepdown LED regulator that achieves up to 2.0A output current. It operates at 1MHz and integrates two very low RDS(ON) power switches to minimize and reduce the external components. It supports the PWM dimming duty 5%-100% to achieve dimmable LED light.

SY8718A1 Datasheet (923.28 KB)

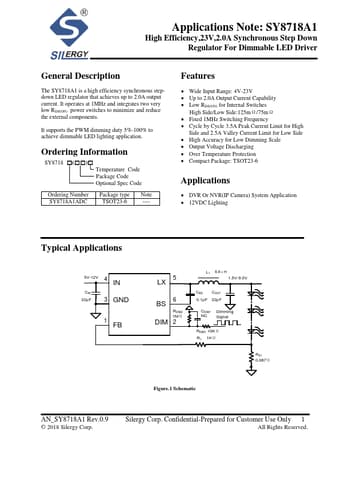

Preview of SY8718A1 PDF

Datasheet Details

Part number:

SY8718A1

Manufacturer:

Silergy

File Size:

923.28 KB

Description:

2.0a synchronous step down regulator.
