SY87701L Datasheet - Micrel Semiconductor

CLOCK AND DATA RECOVERY

SY87701L Features

* Industrial temperature range (

* 40°C to +85°C)

* 3.3V power supply

* Clock and data recovery from 32Mbps up to 1.25Gbps NRZ data stream, clock generation from 32Mbps to 1.25Gbps

* Complies with Bellcore, ITU/CCITT and ANSI specifications for applications such as OC-1, OC-3,

SY87701L General Description

The SY87701L is a complete Clock Recovery and Data Retiming integrated circuit for data rates from 32Mbps up to 1.25Gbps NRZ. The device is ideally suited for SONET/SDH/ATM and Fibre Channel applications and other high-speed data transmission systems. Clock recovery and data retiming is performed by.

SY87701L Datasheet (147.48 KB)

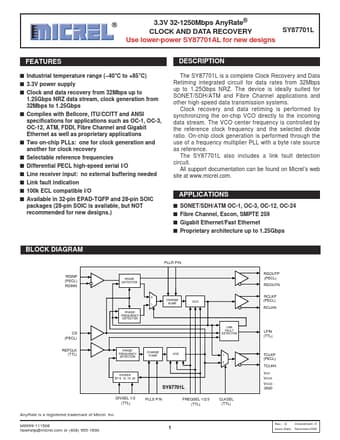

SY87701L Datasheet Preview — Preview of SY87701L PDF

Datasheet Details

Part number:

SY87701L

Manufacturer:

Micrel Semiconductor

File Size:

147.48 KB

Description:

Clock and data recovery.
