SY8745

500kHz White LED Driver

SY8745 Features

* Wide input range: 10-60 V

* 500kHz switching frequency

* Integrated low RDS(ON) FET: 0.16Ω

* PWM/Analog dimming available

* 1.5A LED current output

* Compact package: SO8E Applications

* LED lighting Figure 1. Schematic diagram AN_SY8745 Re

SY8745 General Description

SY8745 is a high efficiency, 10V-60V wide input voltage range DC/DC regulator targeting at LED applications. The device integrates the low RDS(ON) MOSFET and internal compensation. Along with the small SO8E package, the device achieves an extremely small solution size for LED driver design. SY8745 .

SY8745 Datasheet (1.39 MB)

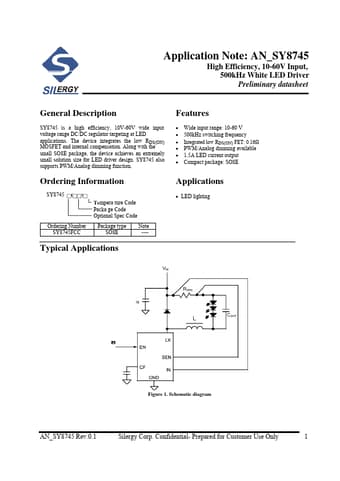

Preview of SY8745 PDF

Datasheet Details

Part number:

SY8745

Manufacturer:

Silergy

File Size:

1.39 MB

Description:

500khz white led driver.
