SY8707 - Step Down White LED Driver

SY8707 Description

Application Note: AN_SY8707 High Efficiency, 1MHz, 1.5A, 30V Step Down White LED Driver Preliminary Specification General .
SY8707 is a high efficiency step down regulator capable of driving 1.

SY8707 Features

* Wide input range: 2.5-30 V
* 1 MHz switching frequency
* Very low RON: 100mΩ
* 100Hz-1kHz wide PWM dimming frequency range
* 0.65-1.2V analog dimming
* Compact package: SOT23-6

SY8707 Applications

* IP camera and CCD camera
* Flash light
* Display cabinet lamp
* LED sign Typical Applications Figure1. Schematic diagram AN_SY8707 Rev. 0.9 Silergy Corp. Confidential- Prepared for Internal Use Only 1 Pinout (top view) AN_SY8707 SOT23-6 Top Mark: TWxyz (device

📥 Download Datasheet

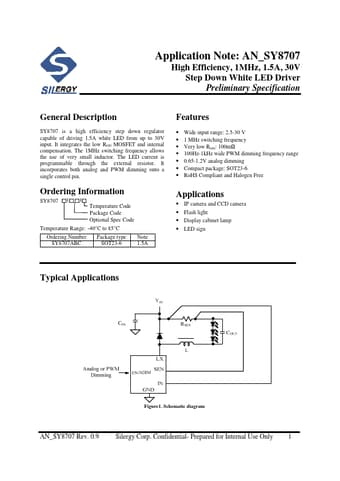

Preview of SY8707 PDF
