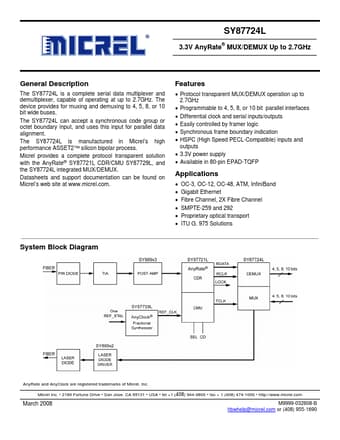

SY87724L 3.3V AnyRate MUX/DEMUX

The SY87724L is a complete serial data multiplexer and demultiplexer, capable of operating at up to 2.7GHz. The device provides for muxing and demuxing to 4, 5, 8, or 10 bit wide buses. The SY87724L can accept a synchronous code group or octet boundary input, and uses this input for parallel data al.

SY87724L Features

* Protocol transparent MUX/DEMUX operation up to 2.7GHz

* Programmable to 4, 5, 8, or 10 bit parallel interfaces

* Differential clock and serial inputs/outputs

* Easily controlled by framer logic

* Synchronous frame boundary indication

* HSPC (High Spe
