SY89297U

3.2Gbps Precision CML

SY89297U Features

* Dual-channel, programmable delay line

* Serial programming interface (SDATA, SCLK, SLOAD)

* Guaranteed AC performance over temperature and voltage:

* > 3.2Gbps/1.6GHz fMAX

* Programming Accuracy:

* Linearity:

* 15ps to +15ps INL

* Mono

SY89297U General Description

The SY89297U is a DC-3.2Gbps programmable, twochannel delay line. Each channel has a delay range from 2ns to 7ns (5ns delta delay) in programmable increments as small as 5ps. The delay step is extremely linear and monotonic over the entire programming range, with 15ps INL over temperature and voltag.

SY89297U Datasheet (674.65 KB)

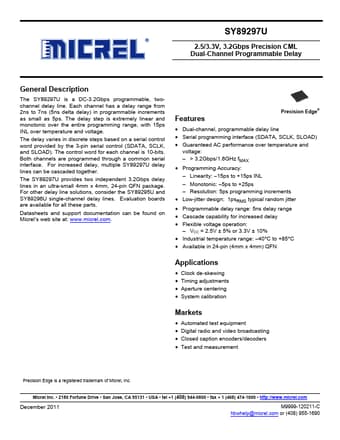

Preview of SY89297U PDF

Datasheet Details

Part number:

SY89297U

Manufacturer:

Micrel Semiconductor

File Size:

674.65 KB

Description:

3.2gbps precision cml.
