- Description
- 3.3V 2.5Gbps ANY INPUT-to-LVPECL DIFFERENTIAL TRANSLATOR
SY89327L Description

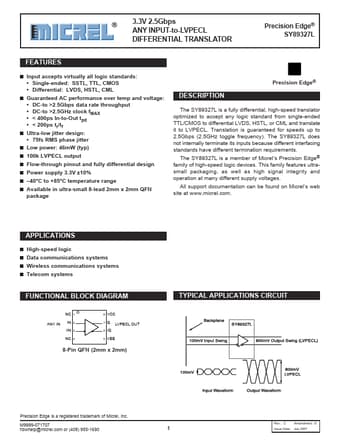

Micrel, Inc.3.3V 2.5Gbps ANY INPUT-to-LVPECL DIFFERENTIAL TRANSLATOR Precision Edge® Precision ESdY8g9e3®27L SY89327L .
The SY89327L is a fully differential, high-speed translator optimized to accept any logic standard from single-ended TTL/CMOS to differential LVDS, HS.
SY89327L Features
* Input accepts virtually all logic standards:
* Single-ended: SSTL, TTL, CMOS
* Differential: LVDS, HSTL, CML
Guaranteed AC performance over temp and voltage:
* DC-to >2.5Gbps data rate throughput
* DC-to >2.5GHz clock fMAX
* < 400ps In-to-Out tpd
* <
SY89327L Applications
* High-speed logic Data communications systems Wireless communications systems Telecom systems
FUNCTIONAL BLOCK DIAGRAM
NC 1
ANY IN
IN 2 /IN 3
NC 4
8 VCC
7 Q LVPECL OUT 6 /Q
5 VEE
8-Pin QFN (2mm x 2mm)
TYPICAL APPLICATIONS CIRCUIT
Precision Edge is a registered trademark of Micrel, Inc. M9999
