SY89833AL Datasheet - Micrel Semiconductor

SY89833AL 3.3V Low Noise Ultra-Precision 1:4 LVDS Fanout Buffer/Translator

Pin Number 15, 16 1, 2 3, 4 5, 6 8 9, 12 10 11 13 7, 14 Pin Name Q0, /Q0 Q1, /Q1 Q2, /Q2 Q3, /Q3 EN /IN, IN VREF-AC VT GND VCC Pin Function LVDS Differential Outputs: Normally terminated with 100Ω across the pair (Q, /Q). See “LVDS Outputs” section, Figure 2a. Unused outputs should be terminated w.

Micrel, Inc. Ordering Information(1) Part Number SY89833ALMG(2) SY89833ALMGTR(1 2) Package Type QFN-16 Operating Range Industrial QFN-16 Industrial Notes: 1. Tape and Reel. 2. Pb-Free package is recommended for new designs. Package Marking 833A with Pb-Free bar-line indicator 833A with Pb-Free bar-line indicator SY89833AL Lead Finish NiPdAu Pb-Free NiPdAu Pb-Free Pin Configuration 16-Pin Truth Table IN /IN EN Q 01 1 0 10 XX 11 0 0(1) Note: 1. On next negative transition of the i.

SY89833AL Datasheet (2.46 MB)

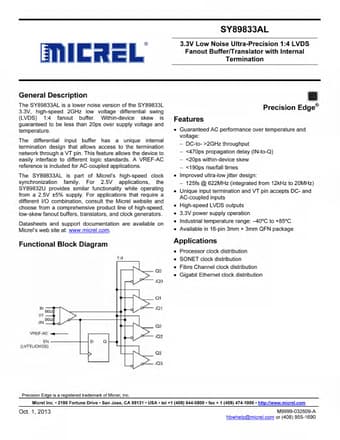

SY89833AL Datasheet Preview — Preview of SY89833AL PDF

Datasheet Details

Part number:

SY89833AL

Manufacturer:

Micrel Semiconductor

File Size:

2.46 MB

Description:

3.3v low noise ultra-precision 1:4 lvds fanout buffer/translator.
