SY89837U

PRECISION 1:8 LVPECL FANOUT BUFFER

SY89837U Features

* Selects between two clocks, and provides 8 precision, low skew LVPECL output copies

* Guaranteed AC performance over temperature and supply voltage:

* Wide operating frequency: 1kHz to >1.5GHz

SY89837U General Description

The SY89837U is a low jitter, low skew, high-speed 1:8 fanout buffer with a unique, 2:1 differential input multiplexer (MUX) optimized for clock redundant switchover applications. Unlike standard multiplexers, the SY89837U unique 2:1 runt pulse eliminator (RPE) input MUX prevents any short cycles or.

SY89837U Datasheet (457.06 KB)

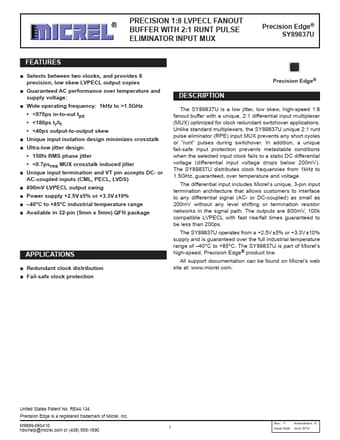

Preview of SY89837U PDF

Datasheet Details

Part number:

SY89837U

Manufacturer:

Micrel Semiconductor

File Size:

457.06 KB

Description:

Precision 1:8 lvpecl fanout buffer.
