SY89838U Precision 1:8 LVDS Clock Fanout Buffer

SY89838U Description

SY89838U Precision 1:8 LVDS Clock Fanout Buffer with 2:1 Runt Pulse Eliminator Input MUX General .
The SY89838U is a low jitter, low skew, high-speed 1:8 fanout buffer with a unique, 2:1 differential input multiplexer (MUX) optimized for redundant s.

SY89838U Features

* Precision Edge®
* Selects between two clocks, and provides 8 precision, low skew LVDS output copies
* 2:1 MUX input provides a glitch-free, stable LVDS output
* Guaranteed AC performance over temperature and supply voltage:
* Wide operating frequency: 1kHz to >1.5

SY89838U Applications

* Unlike standard multiplexers, the SY89838U unique 2:1 Runt Pulse Eliminator (RPE) MUX prevents any short cycles or “runt” pulses during switchover. In addition, a unique fail-safe input protection prevents metastable conditions when the selected input clock fails to a DC voltage (voltage between th

📥 Download Datasheet

Preview of SY89838U PDF

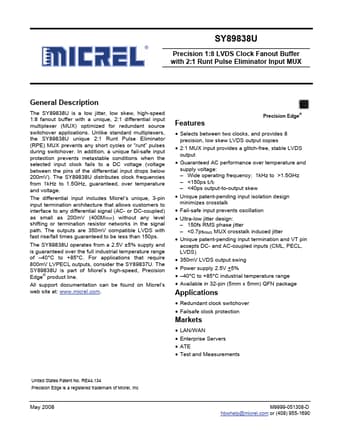

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY89838U
Manufacturer
Micrel Semiconductor
File Size
953.06 KB
Datasheet
SY89838U_MicrelSemiconductor.pdf
Description
Precision 1:8 LVDS Clock Fanout Buffer
