ME4839W Datasheet - Micro Electronics

ME4839W WHITE SIDE BACKLIGHT

www.DataSheet4U.com MICRO ELECTRO NICS ME4839W WHITE SIDE BACKLIGHT FOR LCD DISPLAY ABSOLUTE MAXIMUM RATINGS Power Dissipation Continuous Forward Current Reverse Voltage Operating Temperature Range Storage Temperature Range Pd IF VR Topr Tstg 70mW 30mA 5V -20 to +70°C -25 to +75°C ELECTRO-OPTICAL CHARACTERISTICS (CHIP) (Ta=25°C) PARAMETER SYMBOL MIN TYP MAX UNIT Forward Voltage Reverse Current Chromaticity Coordinates VF IR x y 0.27 0.31 3.3 3.6 100 V μA CONDITIONS IF=20mA VR=5V IF=20mA I.

ME4839W Datasheet (93.62 KB)

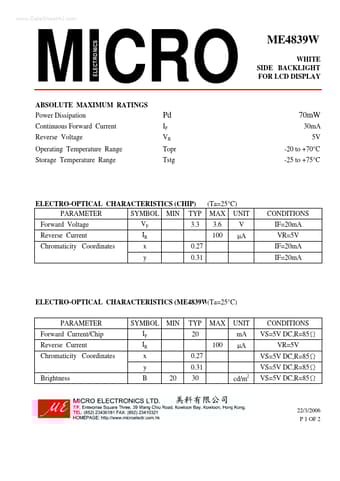

ME4839W Datasheet Preview — Preview of ME4839W PDF

Datasheet Details

Part number:

ME4839W

Manufacturer:

Micro Electronics

File Size:

93.62 KB

Description:

White side backlight.
